Engineered System
What is an Engineered System?
Though we provide fast and flexible adaptation of motion control solutions to changing processes, we offer time-tested engineered systems used by various customers across sectors.
So when you are confused what to choose, we make your decision simpler with our readily available engineered system options.
We, with our engineered systems, offer our customers a full range of services tailored to their specific needs. Right from replacing a system component, to dedicating a complete team of Amtech professionals to implement projects of varying scales, we do it all.
Our vertically integrated engineered systems assure total solutions customized to the customer’s needs. After recognizing the present requirements and future goals of our customers, we integrate all the essential peripherals into one system. Each of these engineered systems is as unique as our customers, and is designed in compliance with industry standards such as UL 508A. With every new requirement; we design a unique customized system adhering to highest quality standards in order to provide exemplary solutions.
Amtech’s Engineered System

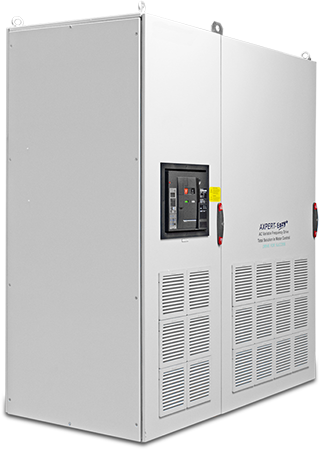

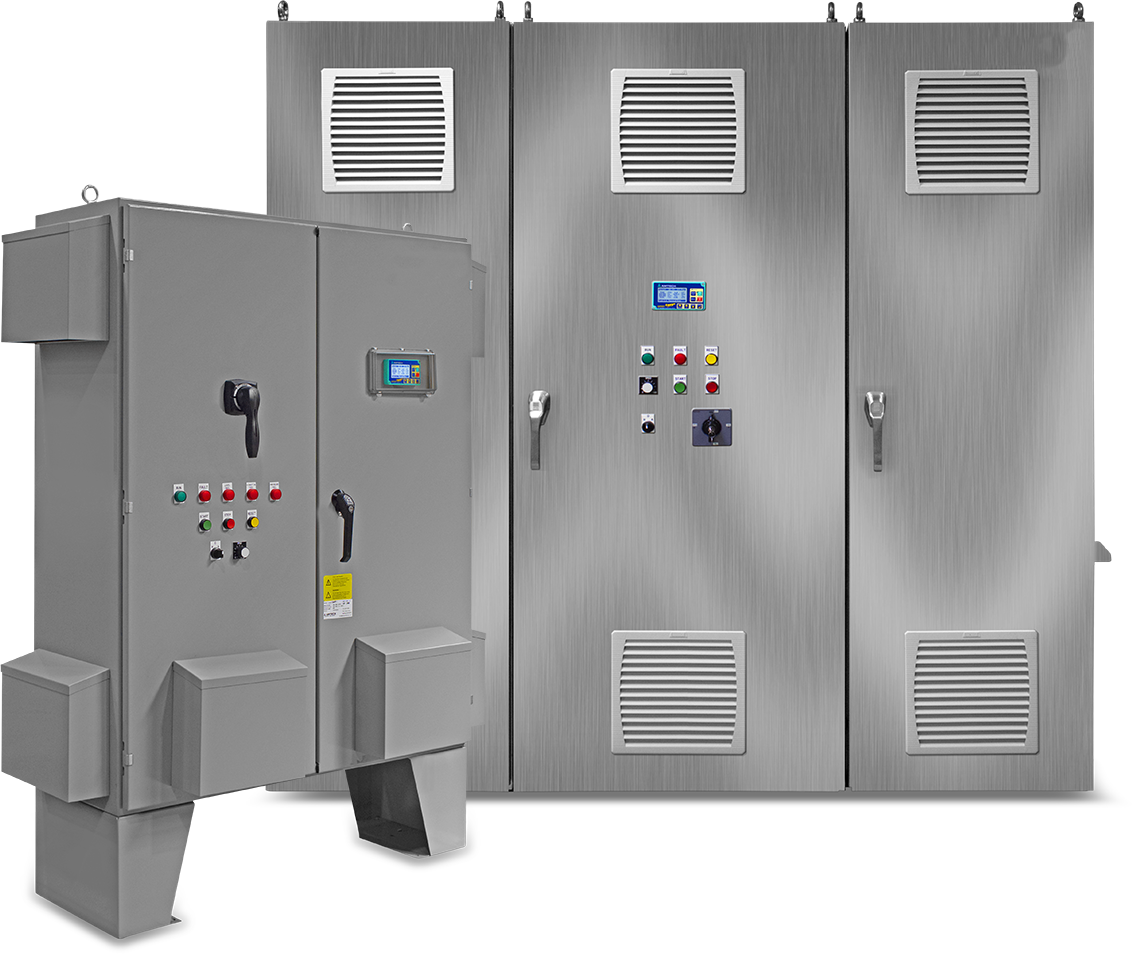

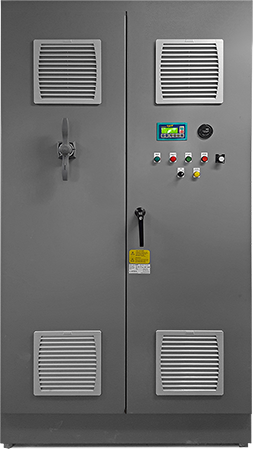

Our engineered system packages include VFD modules combined with customer-specific switchgear, protection systems, enclosure configurations and cooling arrangements. These systems are designed to deliver optimal performance based on power ratings, environmental conditions and installation requirements.
Our team provides cost-effective solutions and technical support to solve complex industrial challenges. That is why Amtech engineered systems are trusted by customers for applications requiring efficient motor starting and reliable automation.

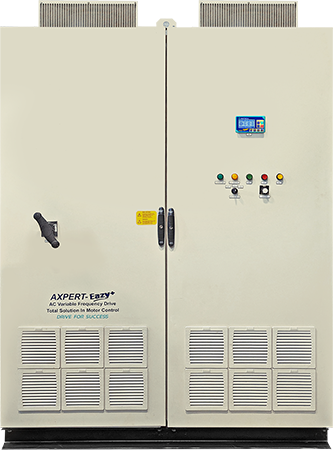

We offer a wide range of variable frequency drives, including the Axpert-Eazy+ Series VFD from 1 HP to 2815 HP in 400 V, 500 V & 690 V range.
Our soft start solutions are available in a wide range from 5 to 1340 HP in 200 V to 690 V voltage range, both continuous duty as well as bypass duty.
We offer harmonic filters and soft starters integrated with VFD cabinets; provide automatic bypass in case of fault and bumpless transition from VFD to standby VFD or fixed frequency grid power; regenerative and resistor type braking solutions.
We offer explosion proof VFDs, designed specifically for hazardous area and harsh environment applications. It can be mounted next to the motor in the classified areas, Class I & II Division 1, & Class III. It is designed to match the demanding process requirements of pumps, compressors, fans, separators and mixers in oil and gas, chemical, waste water treatment, petroleum, petrochemical, natural gas, pharmaceutical and OEM pump skid builders.
- NEMA 1, 12, 3R, 4 and 4X enclosures
- Leg stand kit
- Circuit breaker (MCCB), non-fused disconnect or fusible disconnect protection
- Flange or rotary handle mechanism for circuit breaker
- 2- Contactor bypass, 3-Contactor bypass, 5-Contactor bypass or Soft starter bypass
- Line reactor standard as 3%, optionally 5%
- DC reactor
- Load reactor, dv/dt filter & sine filter
- EMI/RFI filter
- Regenerative type braking
- External DB resistor
- DB unit
- Control power transformer
- Door mounted keypad
- Door mounted keypad with protective cover
- Push-buttons
- Selector switches
- Potentiometers
- Panel heater, air conditioner and other pilot accessories
- Input bridges with 6 to 36 pulse, active front end (AFE) or passive harmonic filter inputs
- Motor protection options
- Individual single VSDs or common DC bus systems with multiple inverters
- Purge enclosure
- Custom enclosures and custom paint colors
- Modbus as standard communication protocol, optional Profibus / Devicenet / Ethernet
- Core competence in AC drives and customized solutions
- Manufacturing excellence
- Quality systems as per global standards
- Wide installation base with major industry coverage
- Highly qualified and experienced professionals
- Global compliances UL, cUL and CE
- Normal duty & heavy duty ratings
- Energy efficient
- Standard NEMA 1, 12, 3R & 4 enclosures
- Can be built to your specifications
- UL panel shop
Frequently Asked Questions
An engineered system is a customized industrial motor control solution designed around specific application, power, environmental, and installation requirements. Amtech integrates VFDs, switchgear, protection systems, enclosures, cooling arrangements, and other peripherals into a coordinated system.
Amtech Engineered Systems can include VFD modules, switchgear, circuit breakers, bypass systems, reactors, harmonic filters, braking solutions, motor protection, control components, communication options, and customized enclosures.
Yes. Amtech designs customized engineered systems according to customer requirements, including enclosure configuration, protection, cooling, bypass arrangements, braking, communication, and other application-specific options.
Engineered Systems can be used across applications involving pumps, compressors, fans, separators, and mixers. Amtech lists applications in industries including oil and gas, chemical, wastewater treatment, petroleum, petrochemical, natural gas, pharmaceutical, and OEM pump skid applications.
Yes. Amtech develops customized motor control and engineered solutions based on customer specifications, with options for individual VSDs, common DC bus systems, motor protection, custom enclosures, braking, cooling, and other system requirements.
