Axpert-Eazy+ Series VFD

Axpert-Eazy+ Series VFD

World’s Most Advanced VFD with User Friendly Design

Axpert-Eazy+ Series is not just a Drive, But the outcome of Amtech’s three decades of experience in motion control and automation.

The Low loss, High efficiency Industrial Grade New Series is designed to meet the ever increasing expectations of our customers; deliver highest performance, protection and energy saving without compromising the user friendliness.

It comes with fully configurable I/O and Functional Safety Functions. Experience the easiness of control and powerful performance.

Range: 1 HP (0.75 kW) to 2815 HP (2100 kW)

Voltage: 380 to 480 V, 500 to 600 V, 601 to 690 V, 3-Phase, 50/60 Hz

  • Highly efficient 7th Generation IGBT
  • New Generation high ripple current long life capacitors
  • Real safety function STO (Safe Torque Off)
  • Fully configurable digital and analog I/Os
  • Standard Wi-Fi and RS 485 Modbus communication
  • Graphical Digital Operation Panel with Real Time Clock
  • Two graph screens with selectable graph signal and resolution
  • 128 x 64 Graphical LCD Display with white back light LCD
  • 8-key Keypad with Real Time Clock
  • Self-explanatory full parameter name in English
  • Auto Rotation of Norm Screens with settable time
  • Diagnosis Functions help to pin point the fault
  • Fault history, last 20 faults with time stamp and 8 important operational parameters
  • Load Analyzer1 shows user selected parameter Vs time profile in 10% steps, useful for fault analysis
  • Load Analyzer2 shows load current Vs time profile for entire service life in 10% step
  • Peak Load monitoring with time stamp and other parameters
  • Shorter programming time, Application Macros set the required parameters as per the application and rating
  • Functional Macros set the required parameters and I/O as per the function usage
  • Identify the changed parameters at a glance with Default differ function and change the parameter from the same menu
  • In-built PLC with Functional Block Based Programming Range of Fully Configurable I/O
  • 2 fixed digital inputs dedicated for Safe Torque Off (STO) function, the digital output can be programmed for the STO feedback
  • 32 Configurable Serial Parameters helps to read 24 and to write 8 parameters in a one go
  • PID, Multi-pump, Ring Spinning Frame, Pattern Run software functions
  • The new series VFD is downsized considerably, up to 52% smaller in volume compare to the previous series and requires less space to install
  • Well-defined terminations for power and control circuit. All the power terminals are on either left side or bottom side
  • Commissioning Mode for easy commissioning
  • Debug Mode for the logic verification without actually rotating the motor
  • IE2 Compliant VFD
  • Built-in PID, PLC & application specific software reduces the peripherals’ cost
  • Built-in Energy Saving Calculator and High-Efficiency operation mode
  • Multi-pump control function
  • Auxiliary Drive control function
  • The cooling fan, one of the common service parts can be easily removed for replacement
  • Total Conductive Time and Total Run Time provides the information about the drive and machine usage for the monitoring of serviceable parts
  • Predictive maintenance helps reduce process down time
  • High Speed Digital Signal Controller protects the drive against abnormal conditions.
  • User settable overload function protects the load against overload conditions.
  • Soft stall current limit reduces the output frequency if the output current exceeds the set level.
  • Input and Output Phase Loss detection prevents overload on other phases.
Power Rating Mains supply voltage -4: 380…480 VAC (nominal voltage 415 VAC), 3-Phase, 3-Wire, -15%, +10%
-6: 500…600 VAC (nominal voltage 575 VAC), 3-Phase, 3-Wire, -15%, +10%
-6: 601…690 VAC (nominal voltage 690 VAC), 3-Phase, 3-Wire, -15%, +10%
Mains supply frequency 50 Hz, 60 Hz or 50/60 Hz, +/- 3 Hz
Input current Indicated in table with 3% source impedance of VFD rating
Output current Nominal output current available continuously, No overload allowed
120% for 60 seconds, 140% for 2.5 seconds every 5 minutes, Normal Duty (ND) use
150% for 60 seconds, 175% for 2.5 seconds every 5 minutes, Heavy Duty (HD) use
Higher overload time during cold start
Control Functions Control Method Digital Space Vector PWM Control
Control Mode V/F, Closed loop V/F, Sensorless Vector Control, Closed loop Vector Control
Frequency Range 0.10…599.00 Hz for V/F Control
Frequency Accuracy Digital references: ±0.01% (0...50 °C) / Analog References: ±0.01% (0...50 °C)
Output Frequency Resolution 0.0001 Hz (20-bit)
Frequency Setting Resolution 0.01 Hz Digital, 0.012 Hz / 50 Hz Analog (12-bit)
V/Hz Characteristics 2 Preprogrammed patterns, 1 Custom 3-point setting pattern
Torque Boost Manual / Automatic Selective: 0…20%
Acceleration / Deceleration Time 0.1…6,00,000 Seconds
Linear or S-Curve selectable
Skip Frequency Three frequencies can be set, band up to 10 Hz
Slip Compensation Slip compensation frequency up to 5 Hz
Carrier Frequency Default: 5 kHz, 2…10 kHz up to AMT-0336A-4
Default: 4 kHz, 2…6 kHz for AMT-0375A-4 and higher
Operation Specifications Speed Search Function Allows the drive to start with rotating machine without damage or tripping. Optional bump-less transfer for redundancy applications.
Kinetic Energy Buffering Allows drive operation during momentary power fluctuations using kinetic energy of load.
Power Loss Carry Through Up to 5 seconds operation during power loss
DC Braking Start frequency 0.1…50 Hz, time 0…25 sec, current 15…150%
Frequency / Torque Setting Input Digital keypad
Analog input (2kΩ potentiometer)
RS-485 and Wi-Fi communication
Built-in PLC analog outputs
Auto Restart Adjustable up to 10 times
PID Controller Built-in PID controller
I/O Specifications Analog Inputs 3 Analog programmable inputs
AI1 & AI2: 0…10V / 4…20mA
AI3: ±10V
Digital Inputs 8 programmable digital inputs (NPN / PNP selectable)
Safety Inputs 2 STO inputs compliant with SIL3 safety level
Digital Outputs 4 programmable digital outputs
Potential Free Contacts 3 relay outputs, 5A @ 240VAC
Analog Outputs AO1 & AO2: 0…10V / 4…20mA
AO3: ±10V
Network Connectivity Isolated RS-485 Modbus RTU + Wi-Fi
Display Display and Keypad Unit 128x64 graphical LCD with white backlight
8-key keypad with status LEDs
Real time clock and monitoring display
Protective Specifications Protective Function Overcurrent, overload, overvoltage, undervoltage, temperature fault, phase loss, earth fault, communication loss etc.
Smooth Operation Current limit, speed search, auto restart, power loss carry through and kinetic buffering
Diagnosis Functions Load analyzer, peak monitoring, fault analysis, debug mode and maintenance timers
Fault History Last 20 faults stored with time stamp and operational parameters
Environment Installation location Indoor
Vibration As per EN 60068-2-6
Ambient temperature -15…50°C
Storage temperature -20…70°C
Altitude 1000m without derating
Humidity 0…95% non-condensing

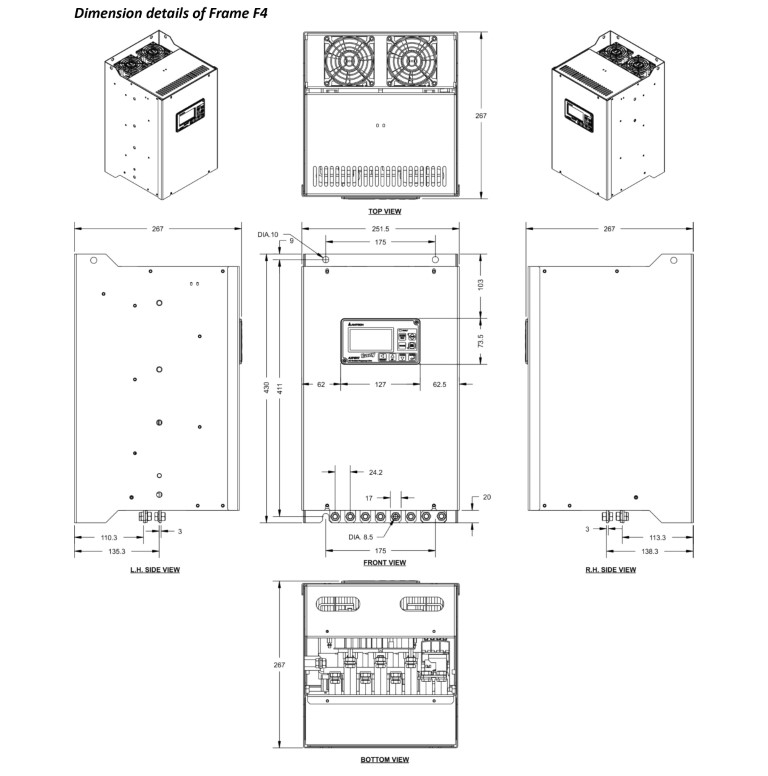

Enclosure IP20 (F0-F3), IP00 (F4 onwards)
Reference Standards UL 508C, UL 61800-5-1, CSA C22.2 NO.274-17, IEC 61800-5-1, CE (EN 61800 series)

The input power factor is approximately 0.9 with 3% ACL or equivalent DCL The inverter efficiency is >98%. Motor efficiency 90% is considered for input current calculation. Note1: The output current indicates the total effective value including the higher harmonics Note2: The kW shown is maximum applicable motor output for a standard 4-pole induction motor. Note3: If the default carrier frequency is exceeded, derate the output current by 5% per 1 kHz as the reduced rating.

Input Voltage 380...480 V
MODEL NO  OVERLOAD NORMAL DUTY HEAVY DUTY
Hp kW AMPS Hp kW AMPS Hp kW AMPS
AMT-002A6-4 1 0.75 2.5 1 0.75 2.4 0.75 0.5 2.4
AMT-003A3-4 1.5 1.1 3.2 1.5 1.1 3 1 0.75 2.5
AMT-0004A-4 2 1.5 3.8 2 1.5 3.6 1.5 1.1 3.2
AMT-005A8-4 3 2.2 5.5 3 2.2 5.2 2 1.5 4.5
AMT-0008A-4 4 3 7.6 4 3 7 3 2.2 5.5
AMT-0010A-4 5 4 9.5 5 4 9 3 3 7.6
AMT-0014A-4 7.5 5.5 13 7.5 5.5 12 5 4 10.5
AMT-0018A-4 10 7.5 17 10 7.5 16 7.5 5.5 13
AMT-0025A-4 15 11 24 15 11 23 10 7.5 20
AMT-0033A-4 20 15 31 20 15 29 15 11 25
AMT-0039A-4 25 18.5 37 25 18.5 35 20 15 31
AMT-0048A-4 30 22 45 30 22 43 25 18.5 37
AMT-0065A-4 40 30 62 40 30 59 30 22 45
AMT-0077A-4 50 37 74 50 37 69 40 30 62
AMT-0095A-4 60 45 91 60 45 85 50 37 74
AMT-0115A-4 75 55 110 75 55 105 60 45 91
AMT-0155A-4 100 75 145 100 75 140 75 55 110
AMT-0190A-4 125 90 180 125 90 165 100 75 145
AMT-0225A-4 150 110 215 150 110 205 125 90 180
AMT-0260A-4 200 132 245 200 132 235 150 110 215
AMT-0336A-4 250 160 320 250 160 304 200 132 245
AMT-0375A-4 275 185 355 275 185 342 250 160 320
AMT-0415A-4 300 200 395 300 200 375 250 185 355
AMT-0445A-4 350 220 425 350 220 405 300 200 390
AMT-0510A-4 400 250 485 400 250 460 350 220 405
AMT-0590A-4 450 315 560 450 315 545 400 250 465
AMT-0660A-4 500 355 610 500 355 590 450 315 530
AMT-0785A-4 550 400 745 550 400 710 500 355 610
AMT-0850A-4 600 450 810 600 450 770 550 400 710
AMT-0925A-4 700 500 880 700 500 835 600 450 770
AMT-1040A-4 800 560 990 800 560 940 700 500 835
AMT-1175A-4 900 630 1115 900 630 1065 800 560 940
AMT-1265A-4 1000 710 1200 1000 710 1145 900 630 1020
AMT-1540A-4 1200 800 1410 1200 800 1370 1000 710 1200
AMT-1780A-4 1400 900 1640 1400 900 1560 1200 800 1370
AMT-1900A-4 1500 1000 1800 1500 1000 1700 1400 900 1560
AMT-2100A-4 1600 1100 2000 1600 1100 1900 1500 1000 1700
AMT-2300A-4 1700 1250 2185 1700 1250 2080 1600 1100 1900
AMT-2650A-4 1900 1400 2450 1900 1400 2350 1700 1100 2000
AMT-2900A-4 2100 1550 2650 2100 1550 2500 1900 1400 2350
AMT-3260A-4 2500 1800 2950 2500 1800 2800 2100 1550 2500
AMT-3460A-4 2700 2000 3250 2700 2000 3080 2500 1800 2800
Input Voltage 500...600 V
MODEL NO OVERLOAD NORMAL DUTY HEAVY DUTY
Hp kW AMPS Hp kW AMPS Hp kW AMPS
AMT-0048A-6 40 30 48 40 30 46 30 22 39
AMT-0056A-6 50 37 56 50 37 54 40 30 46
AMT-0075A-6 60 45 75 60 45 72 50 37 56
AMT-0090A-6 75 55 90 75 55 87 60 45 75
AMT-0115A-6 100 75 115 100 75 110 80 60 90
AMT-0140A-6 125 90 140 125 90 135 100 75 115
AMT-0155A-6 150 110 155 150 110 150 125 90 135
AMT-0182A-6 200 132 182 200 132 175 150 110 155
AMT-0221A-6 250 160 221 250 160 215 200 132 182
AMT-0300A-6 300 200 300 300 200 290 250 160 240
AMT-0355A-6 400 250 355 400 250 345 300 200 295
AMT-0398A-6 450 315 398 450 315 387 400 250 345
AMT-0430A-6 500 355 430 500 355 426 450 315 387
AMT-0470A-6 550 400 470 550 400 455 500 355 426
AMT-0553A-6 600 450 553 600 450 537 550 400 482
AMT-0605A-6 700 500 605 700 500 580 600 450 537
AMT-0685A-6 750 560 685 750 560 662 700 500 580
AMT-0750A-6 900 630 750 900 630 730 750 560 662
AMT-0850A-6 950 710 850 950 710 840 900 630 750
AMT-0970A-6 1000 800 970 1000 800 950 950 710 850
AMT-1090A-6 1400 900 1090 1400 900 1060 1000 800 950
AMT-1170A-6 1500 1000 1170 1500 1000 1150 1400 900 1060
AMT-1360A-6 1600 1100 1360 1600 1100 1330 1500 1000 1150
AMT-1520A-6 1700 1250 1520 1700 1250 1440 1600 1100 1330
AMT-1700A-6 2000 1400 1700 2000 1400 1680 1700 1250 1440
AMT-1850A-6 2200 1700 1850 2200 1700 1755 2000 1400 1680
AMT-2300A-6 2500 1800 2300 2500 1800 2210 2200 1700 1755
Input Voltage 601...690 V
MODEL NO OVERLOAD NORMAL DUTY HEAVY DUTY
Hp kW AMPS Hp kW AMPS Hp kW AMPS
AMT-0048A-6 50 37 48 50 37 46 40 30 39
AMT-0056A-6 60 45 56 60 45 54 50 37 46
AMT-0075A-6 75 55 75 75 55 72 60 45 56
AMT-0090A-6 100 75 90 100 75 87 80 60 75
AMT-0115A-6 125 90 115 125 90 110 100 75 90
AMT-0140A-6 150 110 140 150 110 135 125 90 115
AMT-0155A-6 200 132 155 200 132 150 150 110 135
AMT-0182A-6 250 160 182 250 160 175 200 132 155
AMT-0221A-6 300 200 221 300 200 215 250 160 182
AMT-0300A-6 400 250 300 400 250 290 300 200 240
AMT-0355A-6 450 315 355 450 315 345 400 250 295
AMT-0398A-6 500 355 398 500 355 387 450 315 345
AMT-0430A-6 550 400 430 550 400 426 500 355 387
AMT-0470A-6 600 450 470 600 450 455 550 400 426
AMT-0553A-6 700 500 553 700 500 537 600 450 482
AMT-0605A-6 750 560 605 750 560 580 700 500 537
AMT-0685A-6 900 630 685 900 630 662 750 560 580
AMT-0750A-6 1000 710 750 1000 710 730 900 630 662
AMT-0850A-6 1200 800 850 1200 800 840 1000 710 750
AMT-0970A-6 1400 900 970 1400 900 950 1200 800 850
AMT-1090A-6 1500 1000 1090 1500 1000 1060 1400 900 950
AMT-1170A-6 1600 1100 1170 1600 1100 1150 1500 1000 1060
AMT-1360A-6 1700 1250 1360 1700 1250 1330 1600 1100 1150
AMT-1520A-6 2000 1400 1520 2000 1400 1440 1700 1250 1330
AMT-1700A-6 2400 1700 1700 2400 1700 1680 2000 1400 1440
AMT-1850A-6 2500 1800 1850 2500 1800 1755 2400 1700 1680
AMT-2300A-6 2900 2100 2300 2900 2100 2210 2500 1800 1755

(1) The maximum applicable motor output is given for a standard induction motor.

Input Voltage 380...480 V
MODEL FRAME WEIGHT (Kg / lb) DIMENSIONS-INCH (MM)
H W D

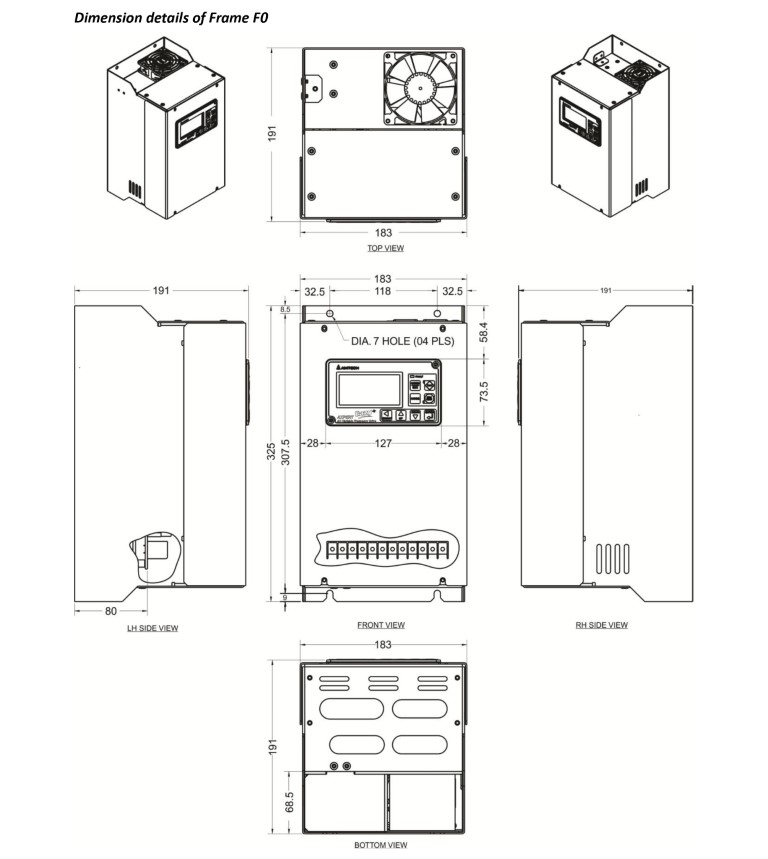

AMT-002A6-4 F0 6.7 / 14.8 12.80(325) 7.20(183) 7.52(191)
AMT-003A3-4 F0 6.7 / 14.8 12.80(325) 7.20(183) 7.52(191)
AMT-0004A-4 F0 6.7 / 14.8 12.80(325) 7.20(183) 7.52(191)
AMT-005A8-4 F0 6.7 / 14.8 12.80(325) 7.20(183) 7.52(191)
AMT-0008A-4 F0 6.7 / 14.8 12.80(325) 7.20(183) 7.52(191)
AMT-0010A-4 F0 6.7 / 14.8 12.80(325) 7.20(183) 7.52(191)
AMT-0014A-4 F0 6.7 / 14.8 12.80(325) 7.20(183) 7.52(191)

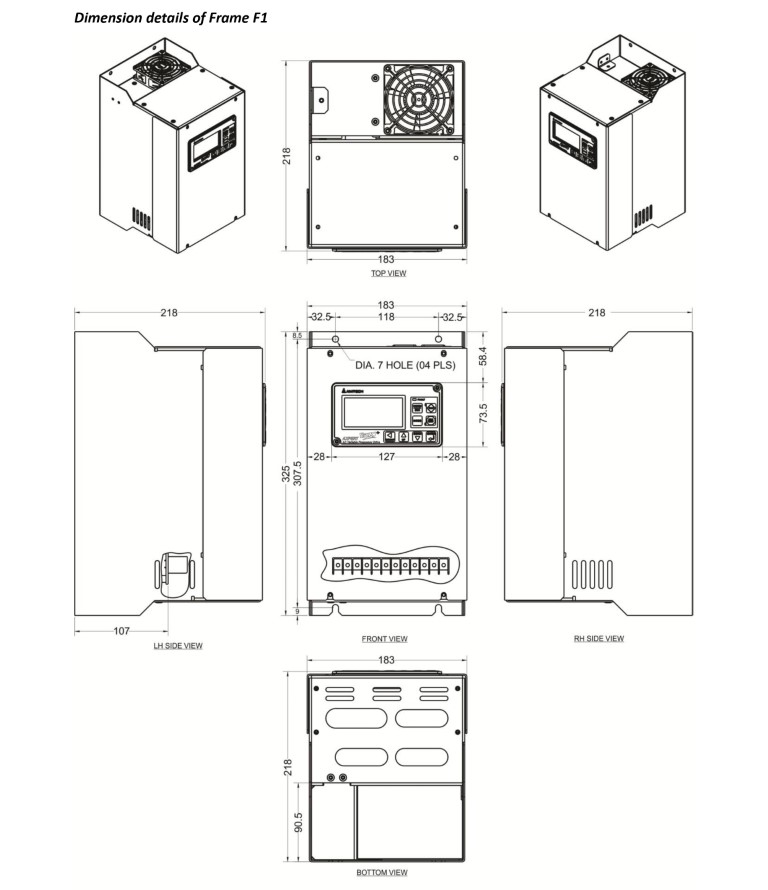

AMT-0018A-4 F1 8.1 / 17.9 12.80(325) 7.20(183) 8.58(218)

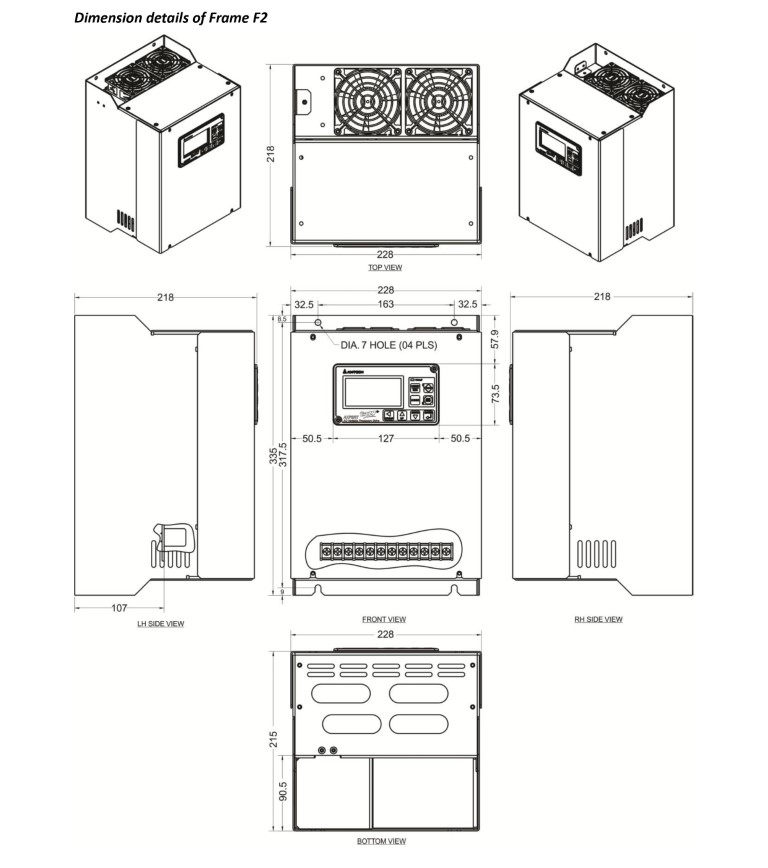

AMT-0025A-4 F2 9.0 / 20.3 13.19(335) 8.98(228) 8.58(218)
AMT-0033A-4 F2 9.7 / 21.4 13.19(335) 8.98(228) 8.58(218)

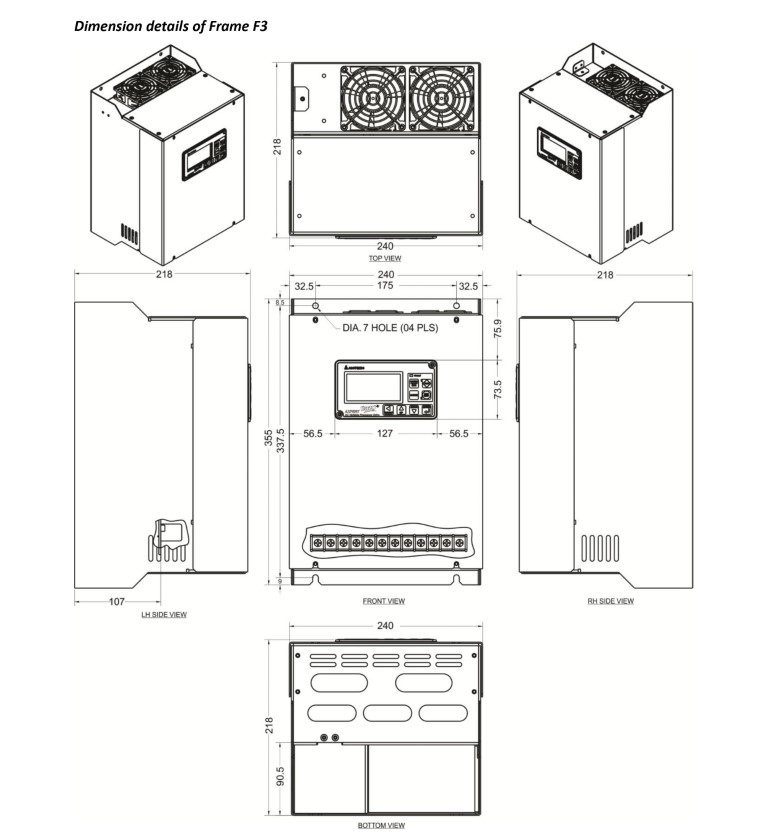

AMT-0039A-4 F3 10.9 / 24.0 13.98(355) 9.45(240) 8.58(218)
AMT-0048A-4 F3 10.9 / 24.0 13.98(355) 9.45(240) 8.58(218)
AMT-0065A-4 F4 18.5 / 40.8 16.93(430) 9.9(251.5) 10.51(267)
AMT-0077A-4 F4 18.5 / 40.8 16.93(430) 9.9(251.5) 10.51(267)
AMT-0095A-4 F5 23.5 / 51.8 19.69(500) 9.9(251.5) 11.81(300)
AMT-0115A-4 F5 23.5 / 51.8 19.69(500) 9.9(251.5) 11.81(300)
AMT-0155A-4 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0190A-4 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0225A-4 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0260A-4 F7 61.8 / 136.3 34.65(880) 13.70(348) 13.70(348)
AMT-0336A-4 F7 63.2 / 139.4 34.65(880) 13.70(348) 13.70(348)

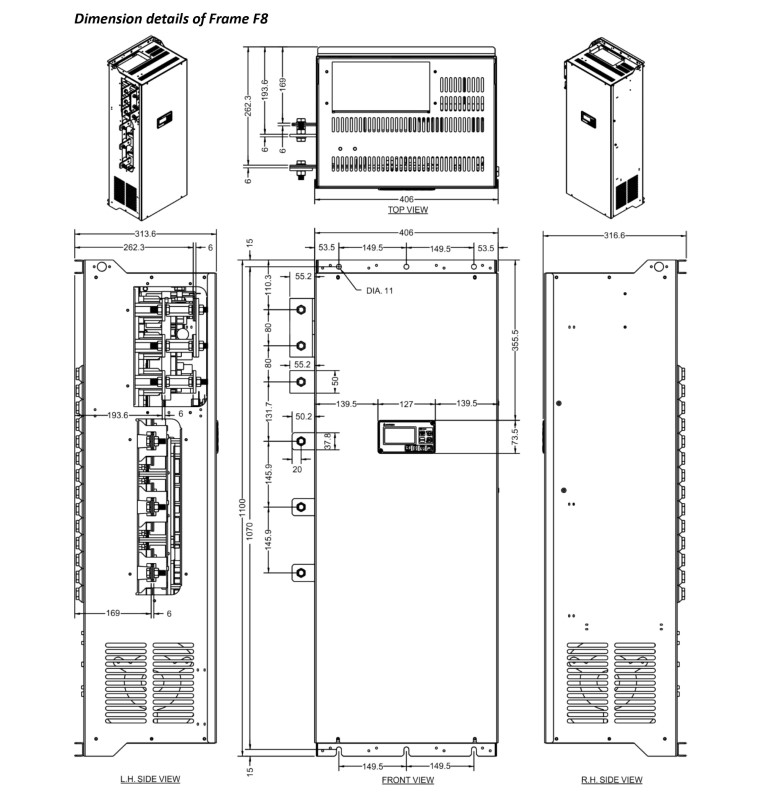

AMT-0375A-4 F8 88.2 / 194.5 43.31(1100) 15.98(406) 12.46(316.5)
AMT-0415A-4 F8 88.2 / 194.5 43.31(1100) 15.98(406) 12.46(316.5)
AMT-0445A-4 F8 88.2 / 194.5 43.31(1100) 15.98(406) 12.46(316.5)
AMT-0510A-4 F8 88.2 / 194.5 43.31(1100) 15.98(406) 12.46(316.5)

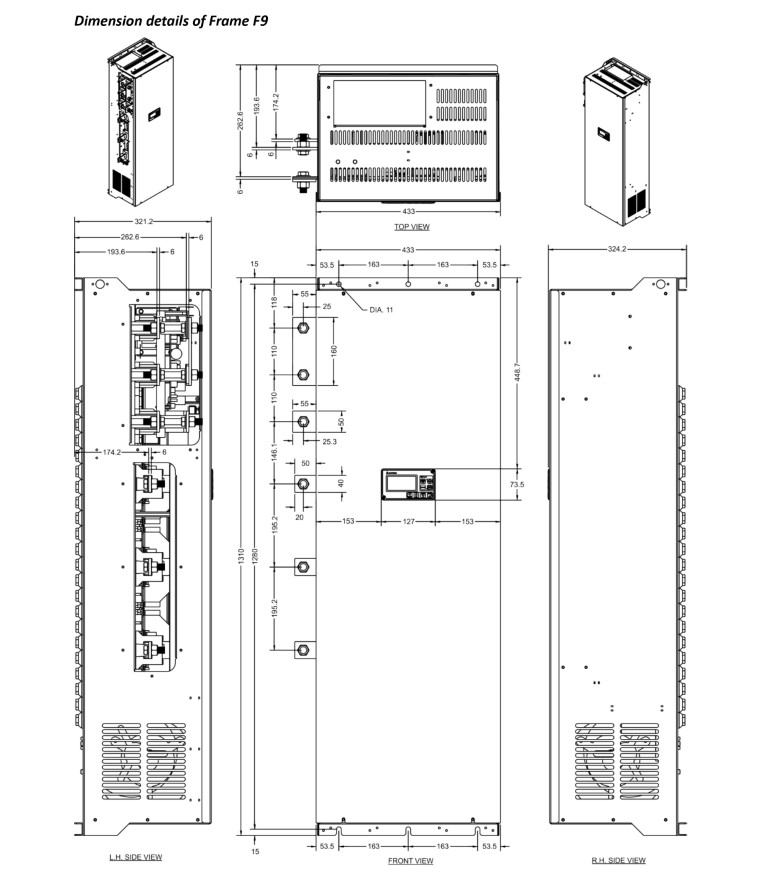

AMT-0590A-4 F9 115 / 253.6 51.57(1310) 17.05(433) 12.76(324.2)
AMT-0660A-4 F9 115 / 253.6 51.57(1310) 17.05(433) 12.76(324.2)

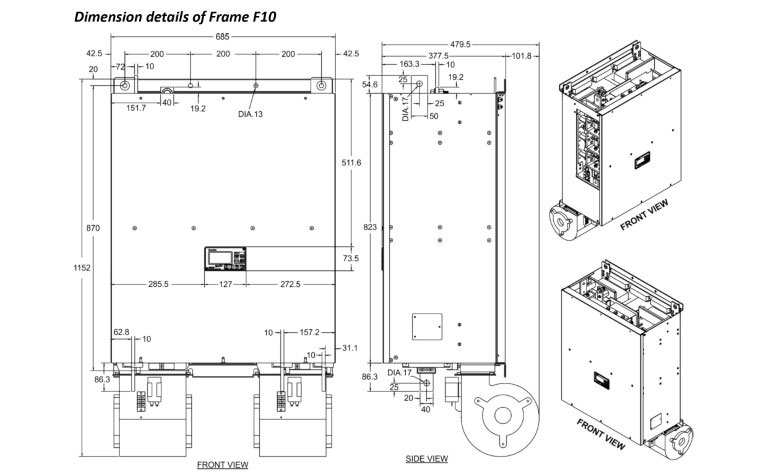

AMT-0785A-4 F10 154 / 339.5 45.35 (1152) 25.59 (700.7) 18.75 (476.3)
AMT-0850A-4 F10 154 / 339.5 45.35 (1152) 25.59 (700.7) 18.75 (476.3)
AMT-0925A-4 F10 154 / 339.5 45.35 (1152) 25.59 (700.7) 18.75 (476.3)
AMT-1040A-4 F11 208 / 458.5 44.76 (1137) 38.35 (974) 19.82 (503.4)
AMT-1175A-4 F11 208 / 458.5 44.76 (1137) 38.35 (974) 19.82 (503.4)
AMT-1265A-4 F11 208 / 458.5 44.76 (1137) 38.35 (974) 19.82 (503.4)
AMT-1540A-4 F12 * * * *
AMT-1780A-4 F12 * * * *
AMT-1900A-4 F13 * * * *
AMT-2100A-4 F13 * * * *
AMT-2300A-4 F13 * * * *
AMT-2650A-4 F14 * * * *
AMT-2900A-4 F14 * * * *
AMT-3260A-4 F15 * * * *
AMT-3460A-4 F15 * * * *
Input Voltage 500...600V
MODEL FRAME WEIGHT (Kg / lb) DIMENSIONS-INCH (MM)
H W D
AMT-0048A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0056A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0075A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0090A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0115A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0140A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0155A-6 F7 63 / 138.9 34.65(880) 13.70(348) 13.70(348)
AMT-0182A-6 F7 63 / 138.9 34.65(880) 13.70(348) 13.70(348)
AMT-0221A-6 F7 63 / 138.9 34.65(880) 13.70(348) 13.70(348)
AMT-0300A-6 F8 90 / 198.4 43.31(1100) 15.98(406) 12.46(316.5)
AMT-0355A-6 F8 90 / 198.4 43.31(1100) 15.98(406) 12.46(316.5)
AMT-0398A-6 F9 115 / 253.6 51.57(1310) 17.05(433) 12.76(324.2)
AMT-0430A-6 F9 115 / 253.6 51.57(1310) 17.05(433) 12.76(324.2)
AMT-0470A-6 F10 * 45.55(1157) 26.96(685) 18.88(479.5)
AMT-0553A-6 F10 * 45.55(1157) 26.96(685) 18.88(479.5)
AMT-0605A-6 F11 * 44.72(1136) 38.35(974) 19.82(503.5)
AMT-0685A-6 F11 * 44.72(1136) 38.35(974) 19.82(503.5)
AMT-0750A-6 F11 * 44.72(1136) 38.35(974) 19.82(503.5)
AMT-0850A-6 F11 * 44.72(1136) 38.35(974) 19.82(503.5)
AMT-0970A-6 F12 * 78.74(2000) 55.12(1400) 31.49(800)
AMT-1090A-6 F12 * 78.74(2000) 55.12(1400) 31.49(800)
AMT-1170A-6 F12 * 78.74(2000) 55.12(1400) 31.49(800)
AMT-1360A-6 F13 * 78.74(2000) 78.74(2000) 31.49(800)
AMT-1520A-6 F13 * 78.74(2000) 78.74(2000) 31.49(800)
AMT-1700A-6 F14 * 78.74(2000) 94.49(2400) 31.49(800)
AMT-1850A-6 F14 * 78.74(2000) 94.49(2400) 31.49(800)
AMT-2300A-6 F15 * 78.74(2000) 106.29(2700) 31.49(800)
Input Voltage 601...690V
MODEL FRAME WEIGHT (Kg / lb) DIMENSIONS-INCH (MM)
H W D
AMT-0048A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0056A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0075A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0090A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0115A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0140A-6 F6 41 / 90.4 23.86(606) 12.2(310) 14.29(363)
AMT-0155A-6 F7 63 / 138.9 34.65(880) 13.70(348) 13.70(348)
AMT-0182A-6 F7 63 / 138.9 34.65(880) 13.70(348) 13.70(348)
AMT-0221A-6 F7 63 / 138.9 34.65(880) 13.70(348) 13.70(348)
AMT-0300A-6 F8 90 / 198.4 43.31(1100) 15.98(406) 12.46(316.5)
AMT-0355A-6 F8 90 / 198.4 43.31(1100) 15.98(406) 12.46(316.5)
AMT-0398A-6 F9 115 / 253.6 51.57(1310) 17.05(433) 12.76(324.2)
AMT-0430A-6 F9 115 / 253.6 51.57(1310) 17.05(433) 12.76(324.2)
AMT-0470A-6 F10 * 45.55(1157) 26.96(685) 18.88(479.5)
AMT-0553A-6 F10 * 45.55(1157) 26.96(685) 18.88(479.5)
AMT-0605A-6 F11 * 44.72(1136) 38.35(974) 19.82(503.5)
AMT-0685A-6 F11 * 44.72(1136) 38.35(974) 19.82(503.5)
AMT-0750A-6 F11 * 44.72(1136) 38.35(974) 19.82(503.5)
AMT-0850A-6 F11 * 44.72(1136) 38.35(974) 19.82(503.5)
AMT-0970A-6 F12 * 78.74(2000) 55.12(1400) 31.49(800)
AMT-1090A-6 F12 * 78.74(2000) 55.12(1400) 31.49(800)
AMT-1170A-6 F12 * 78.74(2000) 55.12(1400) 31.49(800)
AMT-1360A-6 F13 * 78.74(2000) 78.74(2000) 31.49(800)
AMT-1520A-6 F13 * 78.74(2000) 78.74(2000) 31.49(800)
AMT-1700A-6 F14 * 78.74(2000) 94.49(2400) 31.49(800)
AMT-1850A-6 F14 * 78.74(2000) 94.49(2400) 31.49(800)
AMT-2300A-6 F15 * 78.74(2000) 106.29(2700) 31.49(800)
* Consult Amtech for Weight and Dimension

Axpert-Eazy+ Series VFD is an Industrial grade product for Speed regulation, energy saving and intelligent control of induction motor. Axpert-Eazy+ VFD serve for most of the industries and its critical applications:

APPLICATION INDUSTRIES
  • Fan
  • Pump
  • Compressor
  • Mixer
  • Agitators
  • Extruder
  • Feeder
  • Crusher
  • Kiln
  • Artifical Lift (Sucker Road Pump) / Pumpjack
  • Centrifuge
Download Brochure

Your VFD Motor Controller is Always In-Stock

Contact Amtech Drives to get the right VFD solution for your application.

Contact Us For Details
