Engineered Solutions
Amtech provides time-tested engineered systems designed to meet the unique needs of industrial automation and motor control applications.
What is an Engineered System?
An engineered system is a customized motor control solution designed to meet the specific operational needs of our customers. These systems integrate Variable Frequency Drives (VFDs), Soft Starters, control components, and required peripherals into a single coordinated solution.
Our engineered systems are designed for reliability, performance, and scalability, making them suitable for a wide range of industrial applications.
From replacing a single system component to delivering complete engineered drive panels and automation solutions, our engineering team develops solutions tailored to each customer’s process requirements.
- Custom engineered system design
- Complete system integration
- Engineering support from concept to commissioning
- Compliance with industry standards such as UL 508A

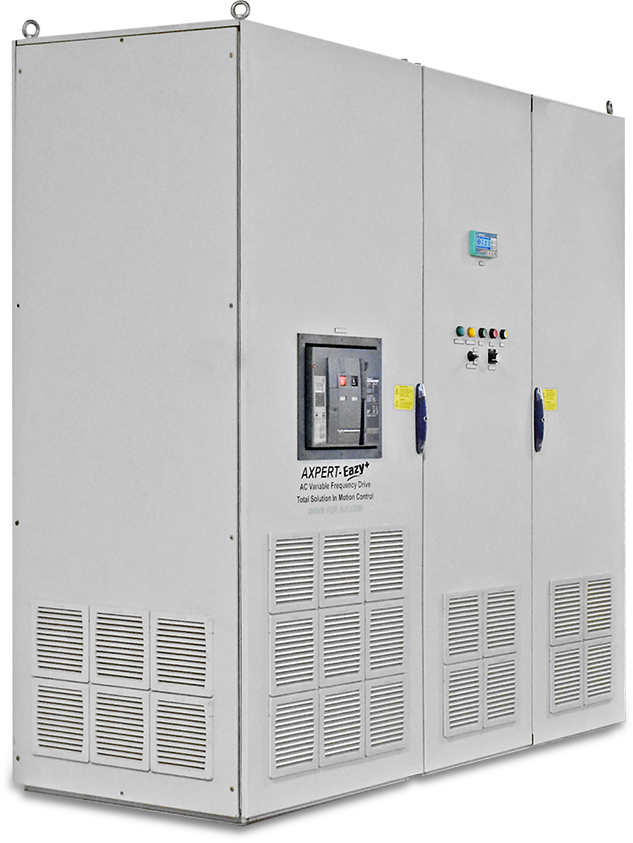

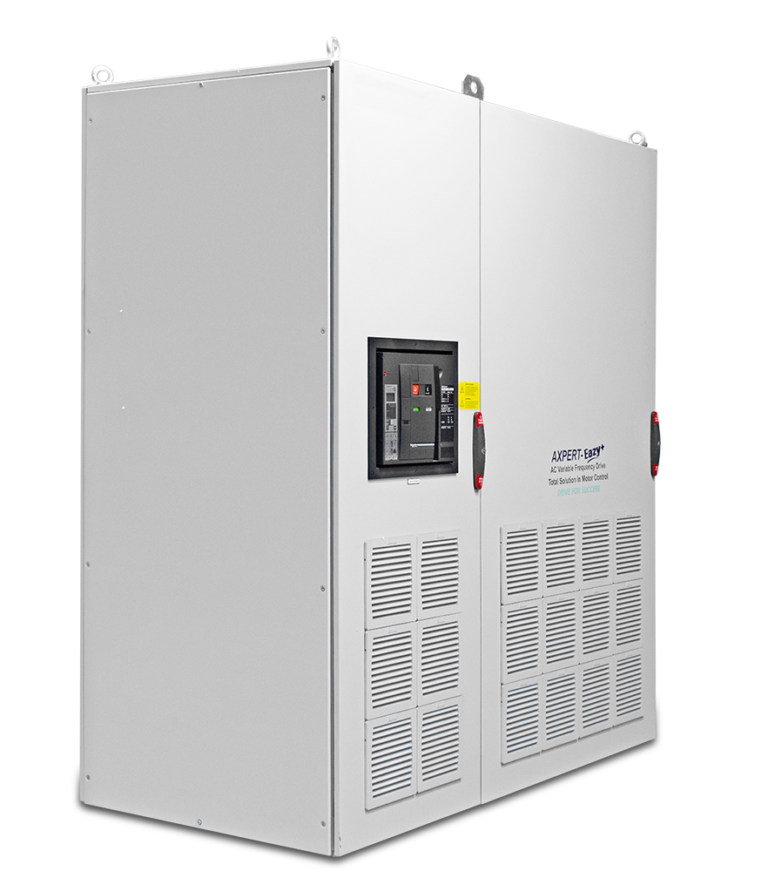

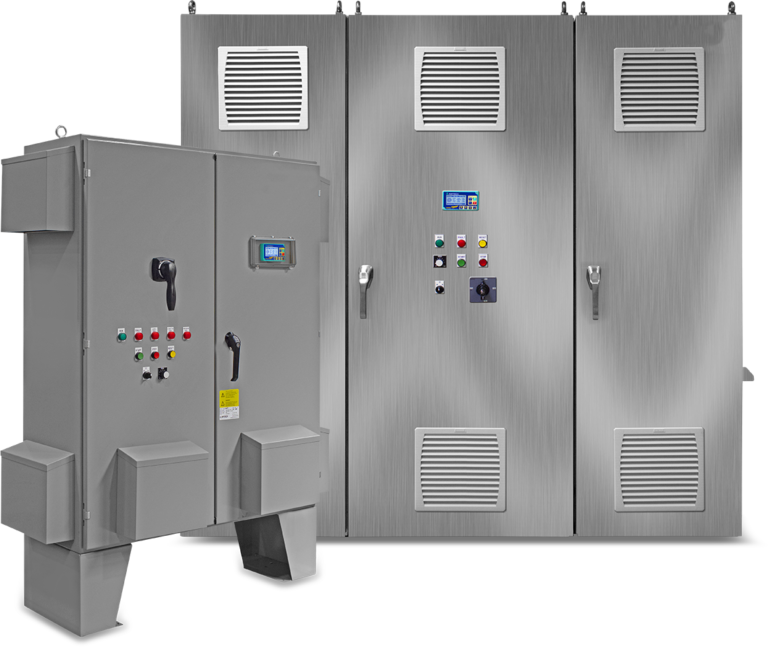

Amtech Engineered System
Our engineered system packages include VFD modules combined with customer-specific switchgear, protection systems, enclosure configurations and cooling arrangements. These systems are designed to deliver optimal performance based on power ratings, environmental conditions and installation requirements.
Our team provides cost-effective solutions and technical support to solve complex industrial challenges. That is why Amtech engineered systems are trusted by customers for applications requiring efficient motor starting and reliable automation.
Engineered System Range
We offer a wide range of variable frequency drives, including the Axpert-Eazy+ Series VFD from 1 HP to 2815 HP in 400 V, 500 V & 690 V range.
Our soft start solutions are available in a wide range from 5 to 1340 HP in 200 V to 690 V voltage range, both continuous duty as well as bypass duty.
We offer harmonic filters and soft starters integrated with VFD cabinets; provide automatic bypass in case of fault and bumpless transition from VFD to standby VFD or fixed frequency grid power; regenerative and resistor type braking solutions.
We offer explosion proof VFDs, designed specifically for hazardous area and harsh environment applications. It can be mounted next to the motor in the classified areas, Class I & II Division 1, & Class III. It is designed to match the demanding process requirements of pumps, compressors, fans, separators and mixers in oil and gas, chemical, waste water treatment, petroleum, petrochemical, natural gas, pharmaceutical and OEM pump skid builders.
Accessories
- NEMA 1, 12, 3R, 4 and 4X enclosures
- Leg stand kit
- Circuit breaker (MCCB), non-fused disconnect or fusible disconnect protection
- Flange or rotary handle mechanism for circuit breaker
- 2- Contactor bypass, 3-Contactor bypass, 5-Contactor bypass or Soft starter bypass
- Line reactor standard as 3%, optionally 5%
- DC reactor
- Load reactor, dv/dt filter & sine filter
- EMI/RFI filter
- Regenerative type braking
- External DB resistor
- DB unit
- Control power transformer
- Door mounted keypad
- Door mounted keypad with protective cover
- Push-buttons
- Selector switches
- Potentiometers
- Panel heater, air conditioner and other pilot accessories
- Input bridges with 6 to 36 pulse, active front end (AFE) or passive harmonic filter inputs
- Motor protection options
- Individual single VSDs or common DC bus systems with multiple inverters
- Purge enclosure
- Custom enclosures and custom paint colors
- Modbus as standard communication protocol, optional Profibus / Devicenet / Ethernet
Advantages with Amtech Engineered Systems
- Core competence in AC drives and customized solutions
- Manufacturing excellence
- Quality systems as per global standards
- Wide installation base with major industry coverage
- Highly qualified and experienced professionals
- Global compliances UL, cUL and CE
- Normal duty & heavy duty ratings
- Energy efficient
- Standard NEMA 1, 12, 3R & 4 enclosures
- Can be built to your specifications
- UL panel shop
